New paper: jaw biomechanics and the evolution of biting performance in theropod dinosaurs

My new paper on theropod jaw biomechanics was finally published as an early online edition of the Proceedings of the Royal Society B. It became available on Wednesday, 9th June, but I was busy studying cat skulls at the NHM in London and I didn't have much time to comment on it until now. It is a modified version of the study I presented at SVP 2009; although I don't know how many people remember my talk. I made a few revisions to the analyses afterwards (as a response to my reviewers), but the main points are pretty much the same.

This study is pretty much a revamp of my MSc thesis where I compared biting efficiency using a novel numerical method. In my MSc thesis, I looked at how the crushing component of the bite force is affected by jaw margin morphology and how they compare across different theropod taxa. Since it was back in my early days of quantitative comparative analyses, I had no idea (or never occurred to me) how I would go about and compare them numerically (e.g. statistically). So I just basically plotted out bite force profiles and compared them qualitatively (e.g. this squiggly line looks a bit more squiggly than this other squiggly line). Furthermore, after I started my PhD studies, as I was looking back at my MSc material for possible publication, I realised that the calculations were based on an erroneous fundamental assumption; or more strictly speaking, my quantification procedure depended entirely on a subjective orientation of the skull image. Attempts at computing orientation-free force profiles were faced with complications (i.e. the computer scripts didn't work). At that time, I didn't have much computing skills (not that I am any better now) but I needed to come up with another way of quantifying the same thing. But I couldn't really think of any so I kind of gave up and focused on my PhD.

It didn't occur to me until after I defended my PhD thesis that all I needed to do was to look at the patterns of mechanical advantages along the entirety of the tooth row, and I would effectively be looking at something very similar to what I intended in my MSc thesis. Mechanical advantage is an established biomechanical metric and is much easier to compute. Most importantly, mechanical advantage is simply a ratio of the in-lever and the out-lever so it is free of jaw/skull orientations; this solves my problem of orientation. Further, since mechanical advantage is a ratio, it is size-independent as well. This makes it possible to directly compare taxa spanning several orders of magnitude in size.

But using mechanical advantage isn't free of complications. The most prominent when applying to theropods is the issue of homologous biting positions. In mammals, where use of mechanical advantage has been common practice for a very long time, mechanical advantages can be taken at homologous or functionally analogous biting positions, such as the canines, the molars or the carnassials. In theropods, tooth counts are variable, and the only homologous/analogous biting positions are the anterior-most and posterior-most biting positions (any other biting position is not directly comparable; for instance how does a 7th maxillary tooth position of Tyrannosaurus relate to in Allosaurus? Or what if the 'longest mid-maxillary tooth/teeth' aren't immediately obvious?). The only way to compare biting positions in between these two points would be to use a proportional positioning system such as percentages. One can use the position of the tooth in relation to the total length of the jaw but that would have undesirable effects of making the posterior-most biting positions incomparable across taxa with differing tooth row length relative to jaw length. So the most consistent way of standardising biting position is to fit every biting position along a percentage scale of the tooth row length with the posterior-most biting position being the 0% tooth row position and the anterior-most biting position being the 100% tooth row position.

To make it clear here (because one of my reviewers confused this) the standardised biting position is employed after mechanical advantages are computed using absolute distances. The standardisation is to make comparisons of mechanical advantages across taxa possible, not to standardise the mechanical advantages themselves.

The result is that you get a plot of mechanical advantage against standardised biting positions. And you can compare how mechanical advantages change along the tooth row (see figure to the right). To be clear again, the 0% tooth row position at the left hand side of the plot is the tooth at the back of the tooth row. As expected, that is where the biting efficiency is highest in any taxon studied. Towards the right hand side of the horizontal axis, we get further along the tooth row towards the front of the snout. As usual in lever mechanics, towards the tip of the snout, mechanical advantage gets lower, or less efficient. This is kind of like trying to cut something tough with a long pair of scissors; it is easy to cut/crush through a strong twig at the back of the scissors but really difficult at the tip of the scissors.

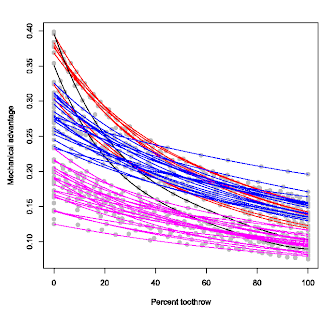

It may occur to some that maybe this profile would be consistent across theropod taxa; after all, they all seem to have longish tooth rows with little variation in tooth row morphology. This is true to some extent that the majority of the profile morphology is relatively similar, in that they are all simple parabolic curves. However, there are major differences in the vertical positioning of the curves, or the absolute values of the mechanical advantages (see figure to the left). This graph is from an older version so it's not exactly the same one in the final paper, but the overall pattern is the same; you see a vertical separation in biting profiles, albeit along a continuum (kind of like a smear I guess). Nonetheless, there are prominently unique profiles. For instance the ones in black, Coelophysis and Syntarsus. These profiles criss-cross the entire vertical spectrum from very high mechanical advantages at the back of the tooth row to very low mechanical advantages at the front of the tooth row. Other theropods do not have this extreme combination.

The ones in red are close but not as extreme. These are represented by the two primitive taxa, Herrerasaurus and Plateosaurus. So this is quite likely the ancestral condition in theropods. Dilophosaurus is also showing a similar profile, consistent with this profile being ancestral (although coelophysoids are an exception). Interestingly, some more derived theropods also share similar profiles with these basal taxa; most notably and surprisingly, Carcharodontosaurus. This type of biting is typified by an extremely high mechanical advantage at the back of the tooth row with relatively high to moderate mechanical advantage at the front of the tooth row. What this reflects is that these taxa have their muscle attachments relatively close to a long tooth row, so the overall mechanical advantage is high at the same time the range in mechanical advantage along the length of the tooth row is high as well. In a way the coelophysoid-type profile is an extreme form of this profile.

The rest of the theropods (the blue and pink ones) are almost indistinct from one another in terms of profile (except for a few), but are different in vertical positions, spread out along a continuum. But there is a noticeable gap, hence the different colour designation. This distinction can be a bit arbitrary so I don't make such a distinction in the paper and is discussed in terms of a gradual spectrum; the high-efficiency end of the spectrum towards the top and the low-efficiency (weak/fast biting) end towards the bottom. The high-efficiency function types (blue) have relatively high mechanical advantages along short tooth rows, while conversely the weak/fast function types (pink) have low mechanical advantages along their short tooth rows.

At this point we are still comparing squiggliness of squiggly lines, so in my next post, I shall introduce what I did in my paper in order to make a more meaningful comparison.


Fabrizio said…
Doesnt the paper say anything bout Carcharocles bite, unlike medias reported?

Or maybe are there two different studies? Did Wroe published a DIFFERENT study featuring Carcharocles bite? Im confused
Id like to know, please
Thanks in advance :)
Hi Fabrizio,

My paper has nothing to do with sharks; it's the journalist making a sensational comparison...

Wroe and colleagues did publish something on biting mechanics in Great Whites but I'm not entirely sure if they've done anything on megalodon...
Fabrizio said…
Thanks for your reply, mr Sakamoto :)
At least now i know whats going on!
Then medias are bullshitting (as usual)
Im reading your paper right now...
Andrea Cau said…
Two questions:

1- In your study, you included taxa known only from very fragmentary skulls (for example, Spinosaurus): since the back of some of these skulls is unknown, the how did you study their mechanical advantages?

2- In tetanurans the distalmost (posteriormost) maxillary tooth is placed rostral to the lacrimal, whereas more basal taxa shows more distally placed tooth-row ends: how did these positional differences affect the result of the study?

Hi Andrea,

Thanks for the questions.

1, I used the relatively recent reconstruction by Dal Sasso et al. (2005). Their reconstruction of the postorbital region is based largely on Irritator so one could say that it is a composite 'generalised' spinosaurine.

2, that is one of the reasons why coelophysoids and basal taxa such as Herrerasaurus and even the outgroup Plateosaurus have extremely high mechanical advantages at the back of the tooth row.
Andrea Cau said…
Thank you for the answers.

Regarding the "Spinosaurus" skull by Dal Sasso et al. (2005), I've discussed with Simone Maganuco (co-author of Sal Sassi and author of the skull drawing you used) on a different interpretation of the spinosaur postorbital region, based on the assumption that the postorbital region was more ventrally flexed relative to the preorbital one. My hypothesis is based on the unusual shape of the lacrimal in spinosaurids, on Henderson (2002) study on skull and orbit shape in theropod skulls, and on basicranial proportion in spinosaurids: it is similar to the "baryonychid" skull in Rauhut (2003).
This different hypothesis produces a snout more rostroventrally directed compared to the "standard one", in particular when the occipital region is oriented vertically.
You can see my hypothesis drawn here:

It should be interesting to see where these alternative spinosaurid skulls result in your analysis.

All the best,
Hi Andrea,

Wow, cool reconstruction! I'm pretty sure your interpretations are likely true. Are you preparing it for publication in any way? I limited myself to published reconstructions (or my own composites based on published materials), so that's why Spinosaurus is represented by that of Dal Sasso et al., (2005). It would indeed be very interesting to see what biting profile would look like using your reconstruction - I think I'll do that if you don't mind (just for fun).

I did make some of my own reconstructions for some taxa, but I didn't for Spinosaurus.
Andrea Cau said…
Thank you,

I discussed that reconstruction in my blog, but it's not published in a paper.

If you would like to test it (just for fun) I would be very happy interested to know the result.

Anonymous said…
You might have heard of this, but a specimen of Tenontosaurus was discovered a while ago that seemed to have bite marks from Deinonychus in the cortices of its bones. The force required to puncture the bones was around 4100 N and they calculated that the animal was capable of exerting around twice that force. Now, I might be misinterpreting the implications of your results, but how does this fit with the biomechanical profile of dromaeosaurs as weak/fast biters?
Here is a link to the article:
